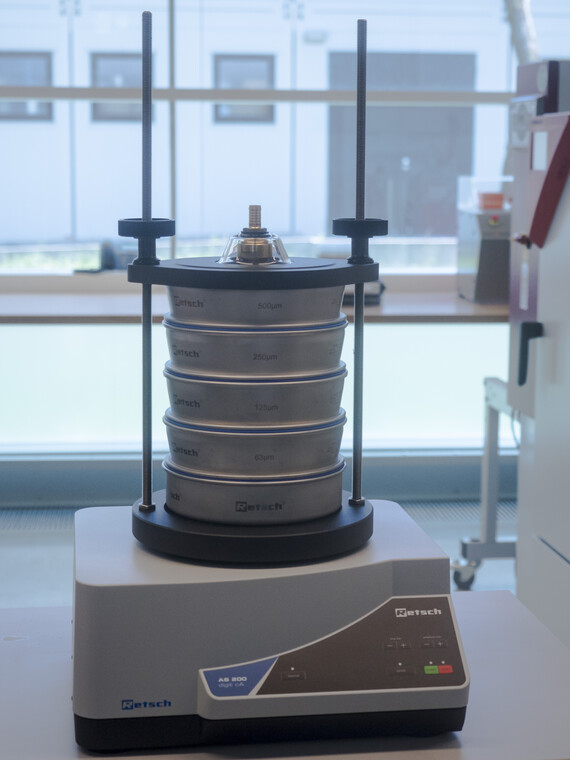

Vibratory Sieve Shaker AS 200 DIGIT CA

© Florian Bittner

Manufacturer: Retsch GmbH

Short description: Vibratory Sieve Shaker (wet and dry sieving) for separation, fractioning, particle size determination of different materials.

Anpplication: Building materials, soils, chemicals, fillers, rubber, plastics, metal powders, minerals, seeds, sand

Technical Data
Operating principle Throwing motion with angular momentum
Amplitude Digital, 0.2 to 3.0 mm, controlled
Feed material Powders, bulk materials, suspensions
Feed capacity 3 kg
Max. number of fractions 9
Sieve dimensions ∅ 200 mm × 50 mm
Mesh sizes 8 mm, 4 mm, 2 mm, 1 mm, 500 μm, 250 μm, 125 μm, 63 μm, 45 μm, 25 μm
Certification ISO 3310-1
